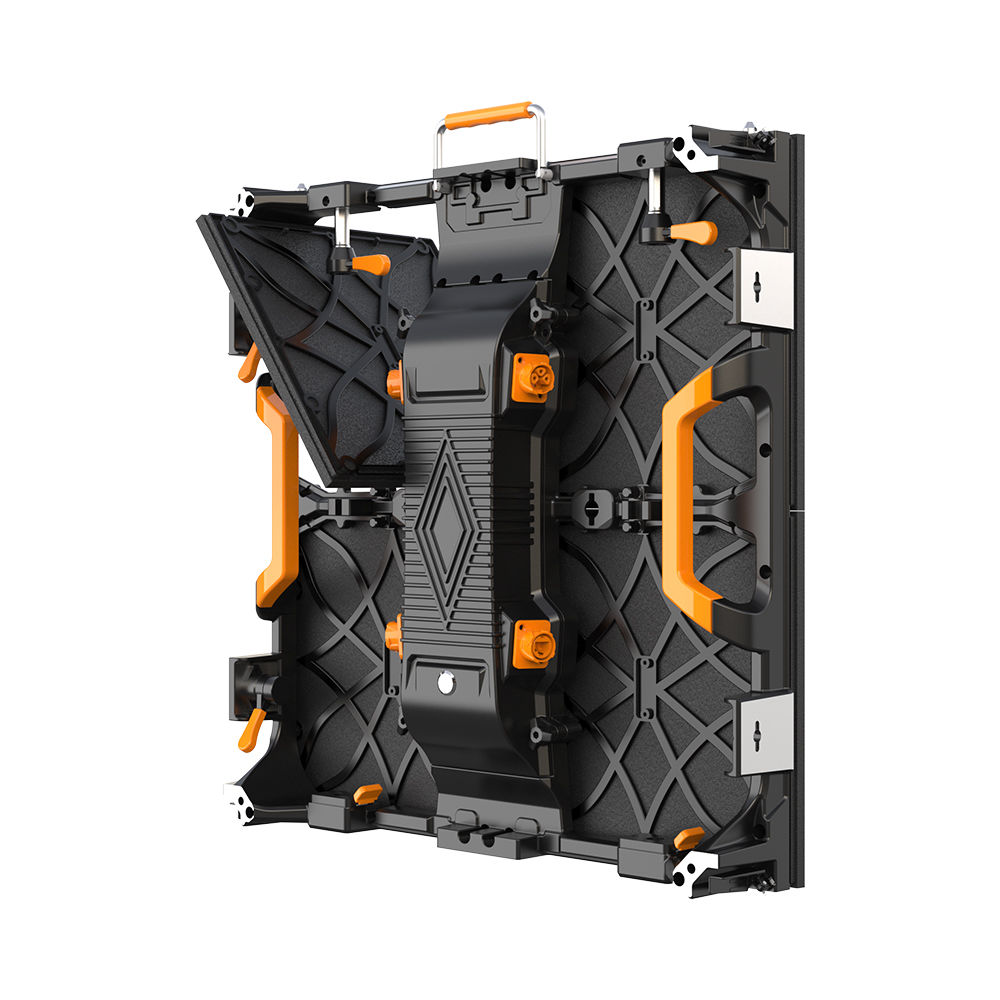

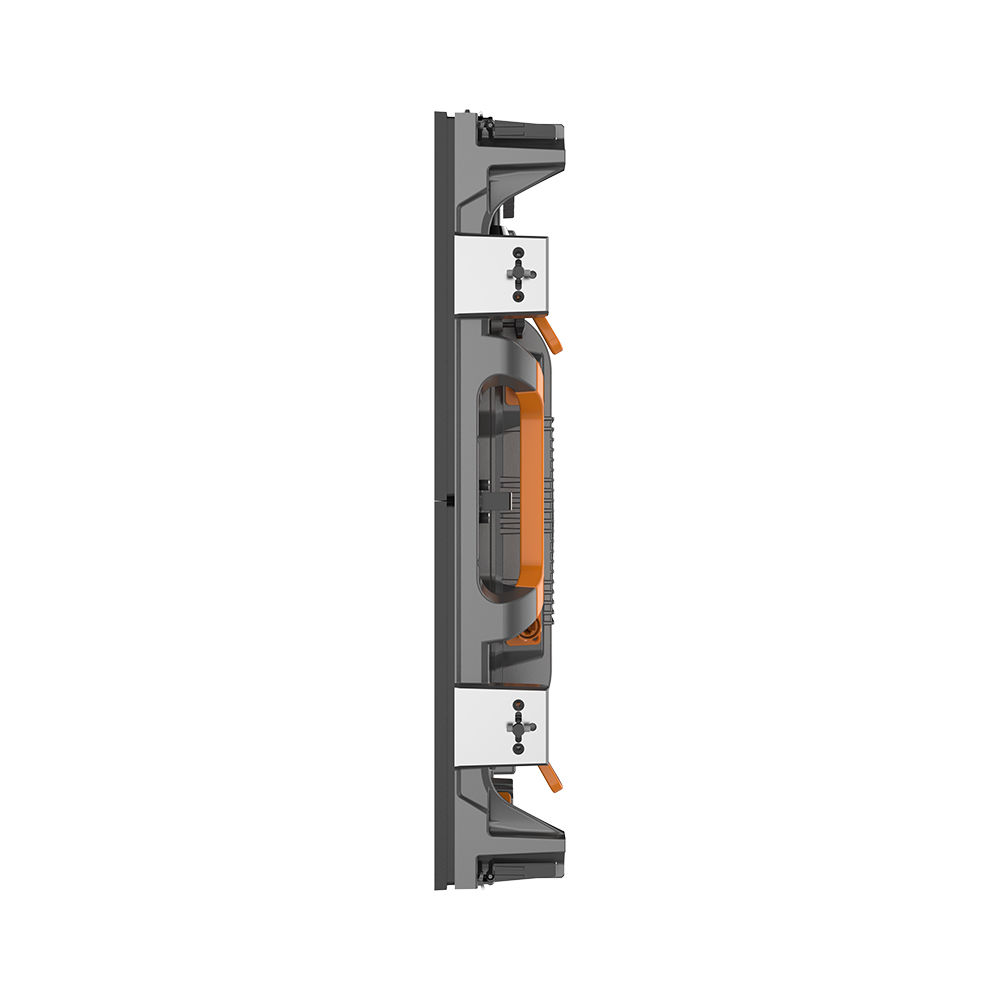

RX

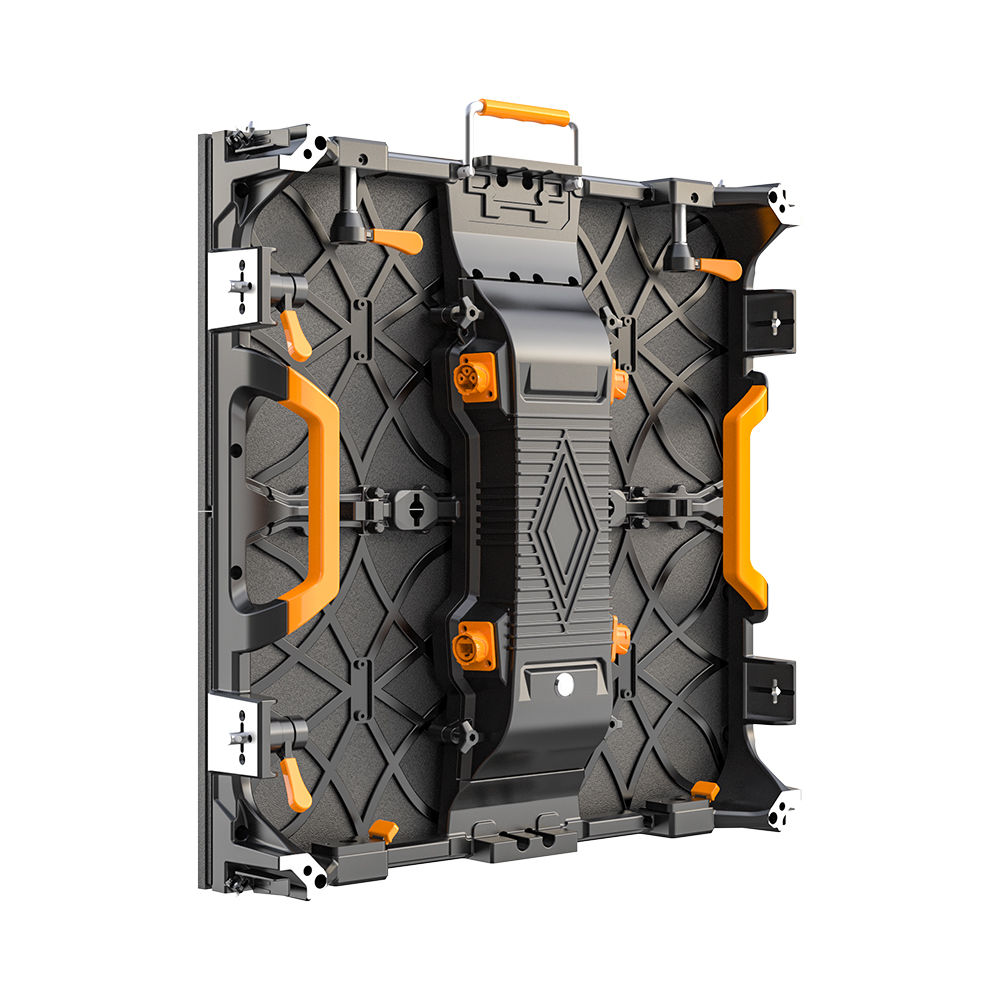

Rental Outdoor & Indoor LED Display Screen Solution

Dimension: 500×500

Pixel Pitch: 2.6 mm, 2.9mm,3.9mm

Applications: Stage, Conferences, Expo, Events, Concert, etc.

  • Fast maintenance, front and rear service
  • Corner protection design
  • Support multi curve, concave, convex , floor display function
  • Hanging & Stacking installation
  • Power Redundancy
  • High refresh rate 3840 hz , no scan line for camera

FEATURES

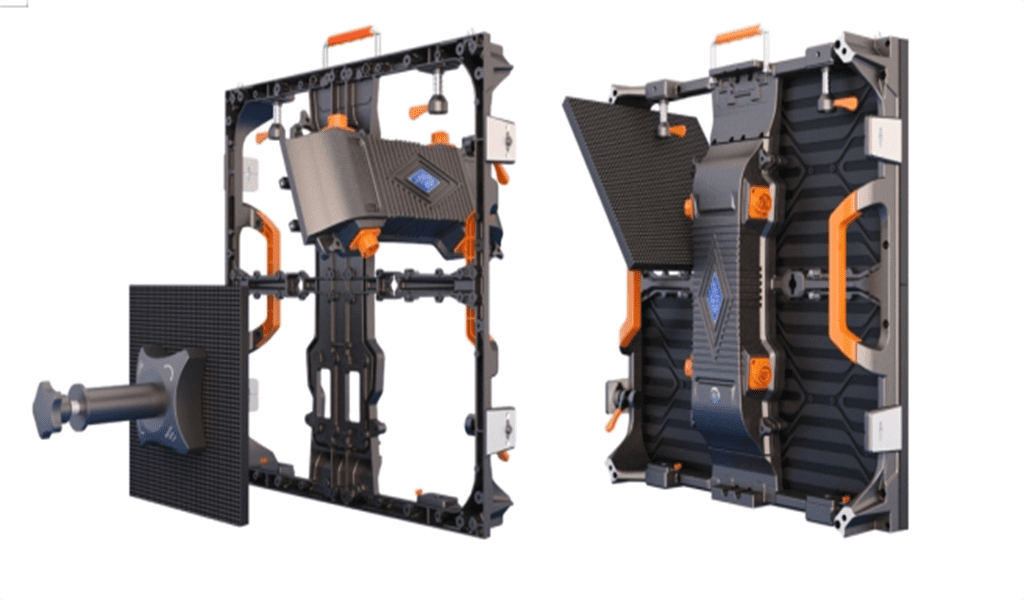

Easy maintenance

Independent power box , Fast maintenance, both front and rear access .

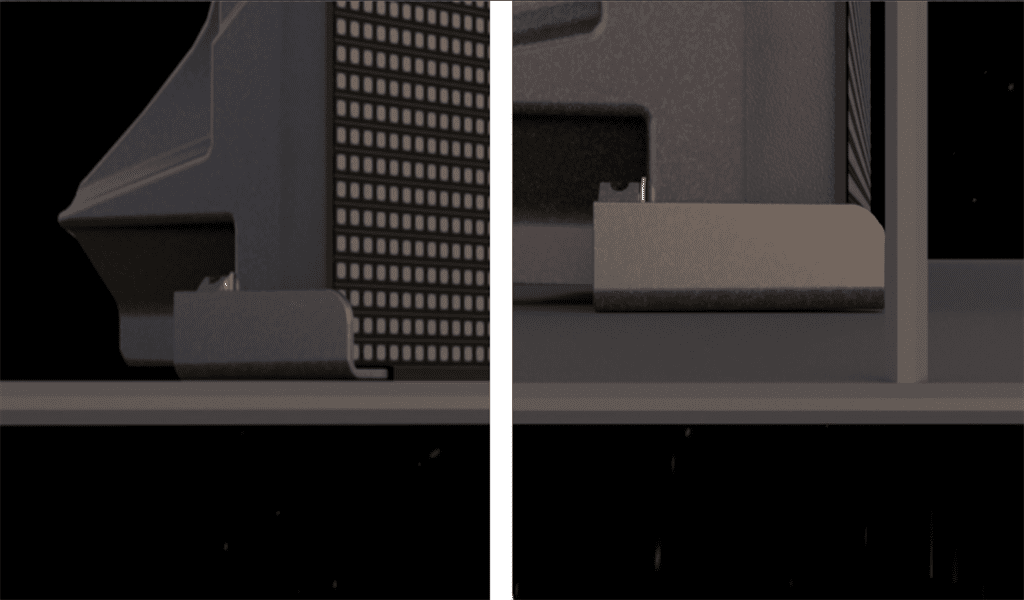

Corner Protector for LED

The RA series has  four corner protectors in each corner to prevent LED to be damaged, more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

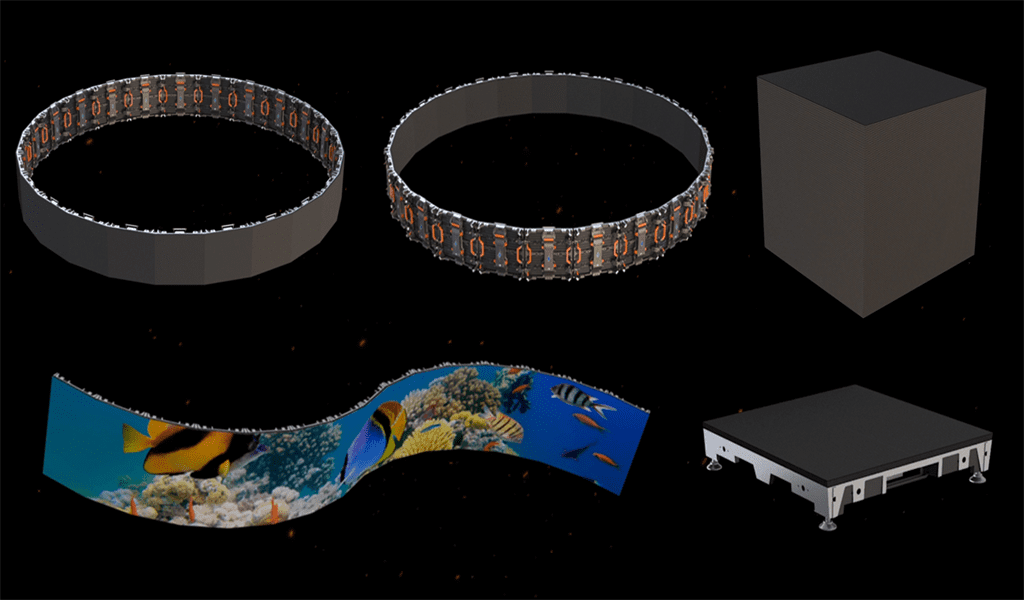

Creative curve Installation

The RA series supports curved installation, concave and convex, and optional for floor function

High contrast with fast refresh rate to achieve best picture quality

High gray: 16bit high grayscale, perfectly showing the details of the dark parts of the image

Wide viewing angle: 160° ultra-wide viewing angle, wider audience and higher advertising revenue

High brush: 3840Hz+, good photo effect, no scanning lines

High contrast: professional mask design, bright and colorful images

High-end PWM chip: using precise current control technology, highly restored colors

Current sharing backup power supply, never black screen

Current sharing backup power supply means that in a large LED screen composed of multiple LED displays, when one or more of the power supplies fails and no longer works, the normal power supply surrounding the faulty power supply will automatically supply power to its display, so that A display with a faulty power supply will not go black due to its power failure.

Video

Specification

Parameter RX2.604 RX2.97 RX3.91(16S) RX3.91(8S)
LED type (SMD) 1415 1415 1921 1921
Pixel Pitch (mm) 2.604 2.97 3.91 3.91

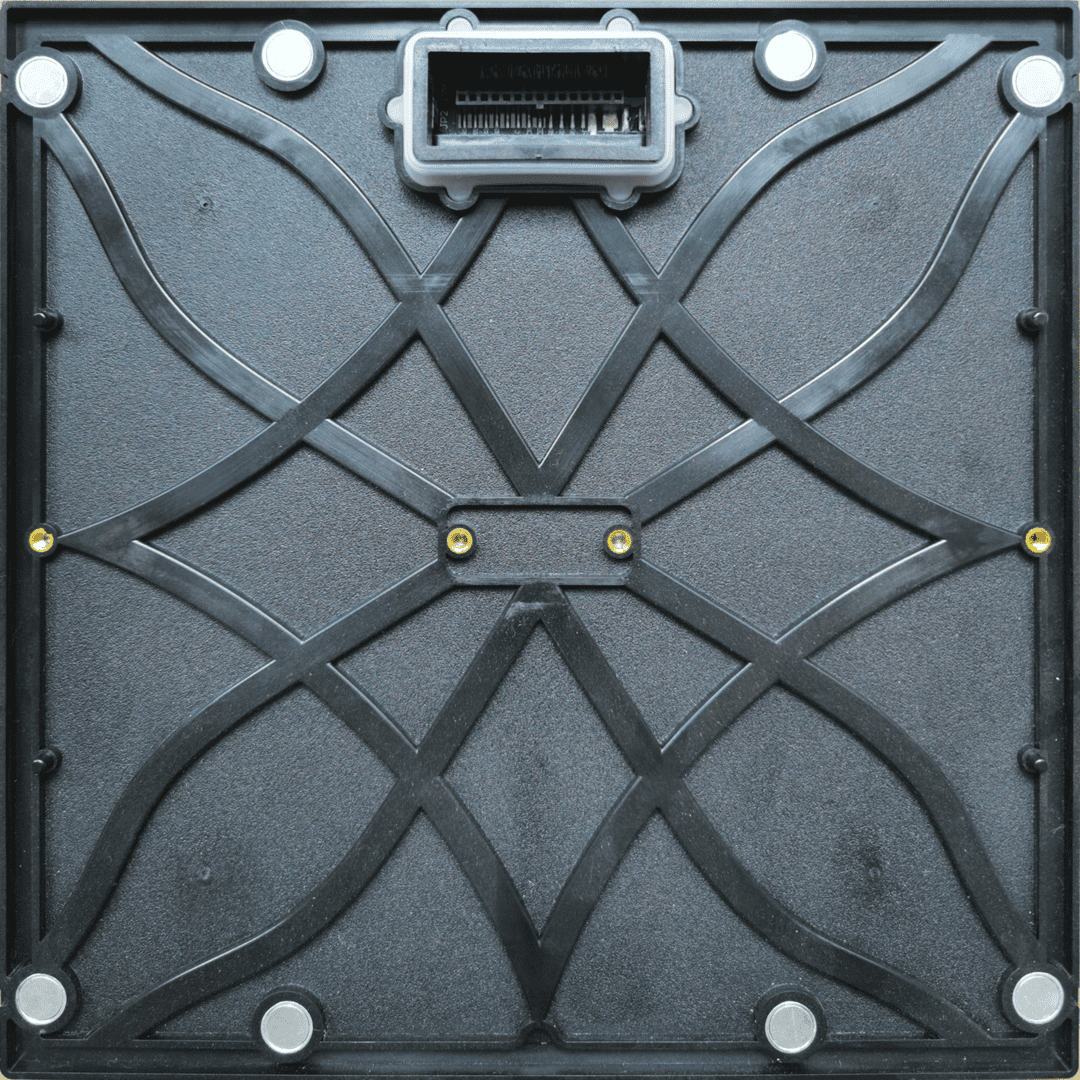

Module resolution(W×H) 96×96 84×84 64×64 64×64
Module Size(mm) 250×250×15 250×250×15 250×250×15 250×250×15
Module weight(kg) 0.58 0.58 0.58 0.58
module matrix(W×H) 2×2 2×2 2×2 2×2
 Module Resolution (W×H) 192×192 168×168 128×128 128×128
Cabinet dimension (mm) 500×500×87 500×500×87 500×500×87 500×500×87
Cabinet weight (kg) 7.5 7.5 7.5 7.5
Cainbet meterial Die-cast aluminum Die-cast aluminum Die-cast aluminum Die-cast aluminum
Pixel Density(dots/㎡) 147456 112896 65536 65536
IP protecction grade IP65 IP65 IP65 IP65
Brightness(nits) ≥4500 ≥4500 ≥4500 ≥6000
color tempreture(K) 6500-9000 6500-9000 6500-9000 6500-9000
View angle(H×V) 140°/ 120° 140°/ 120° 140°/ 120° 140°/ 120°
Max power consumption(W/㎡) 700 700 700 800
Average power consumption (W/㎡) 235 235 235 268
Refresh rate (Hz) 3840 3840 3840 3840
maintenance way Front/ Rear Front/ Rear Front/ Rear Front/ Rear
Working/storage Humidity (- )10℃-50℃/10%RH-98%RH (- )10℃-50℃/10%RH-98%RH (- )10℃-50℃/10%RH-98%RH (- )10℃-50℃/10%RH-98%RH
Working/storage Temperature (-) 20℃-50℃/10%RH-98%RH (-) 20℃-50℃/10%RH-98%RH (-) 20℃-50℃/10%RH-98%RH (-) 20℃-50℃/10%RH-98%RH
