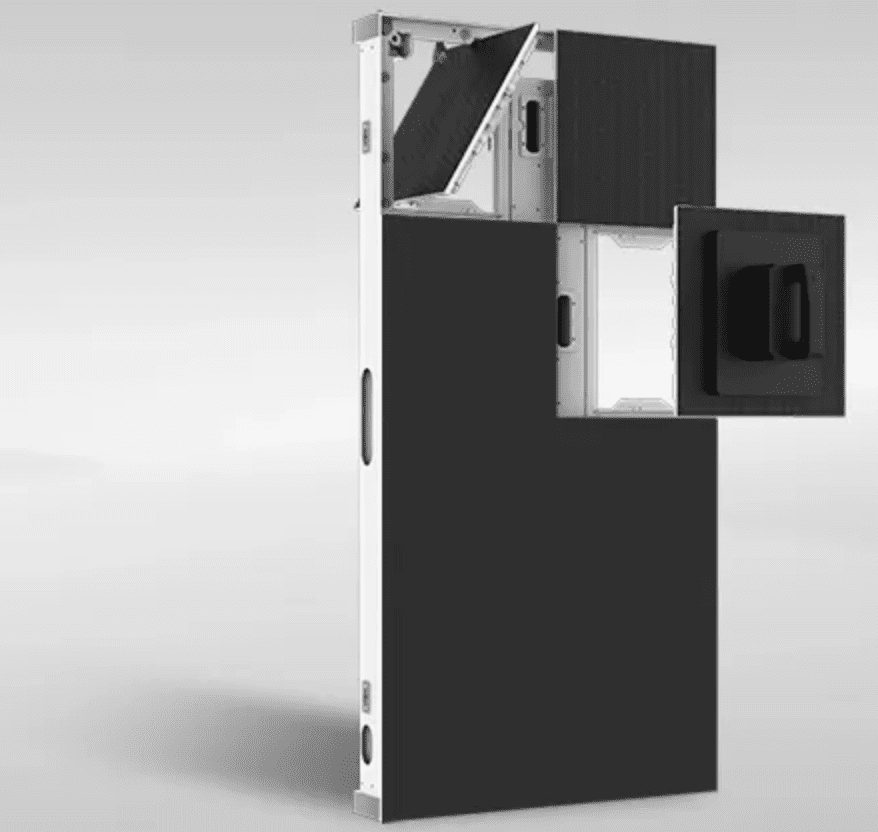

Fast installation and maintenance
Modules, power supplies, all support front or rear maintenance, and support installation before wall mounting to meet more installation environment requirements.

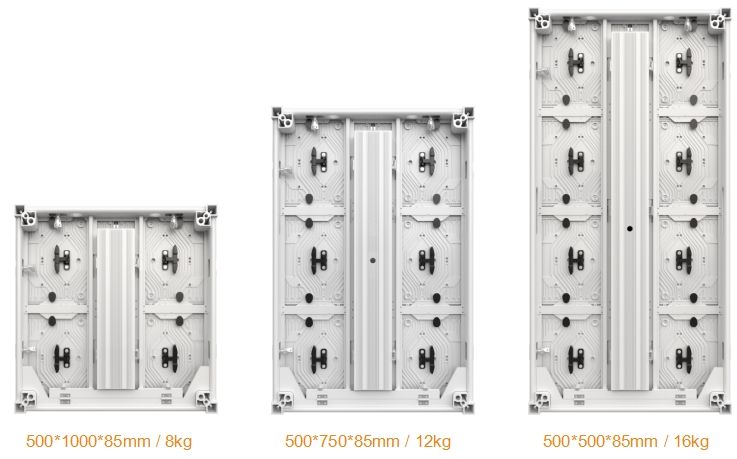

Multiple cabinet sizes
Can be spliced with each other to meet the needs of splicing of different area sizes.

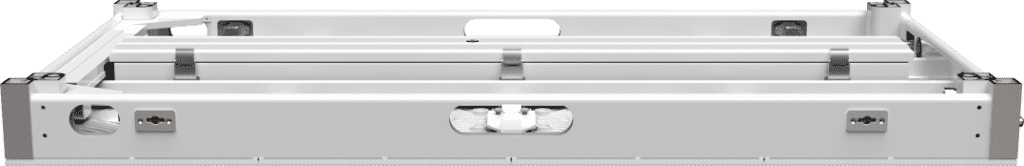

Aluminium profile cabinet structure
With light weight, corrosion resistance, high precision, good flatness, not easy to deform, good heat dissipation, etc., stronger and more durable than the sheet metal cabinet, aluminium profile structure after finishing, can improve the screen splicing accuracy, screen consistency is better, the standard cabinet is as light as 16kg, the thickness is only 85mm.

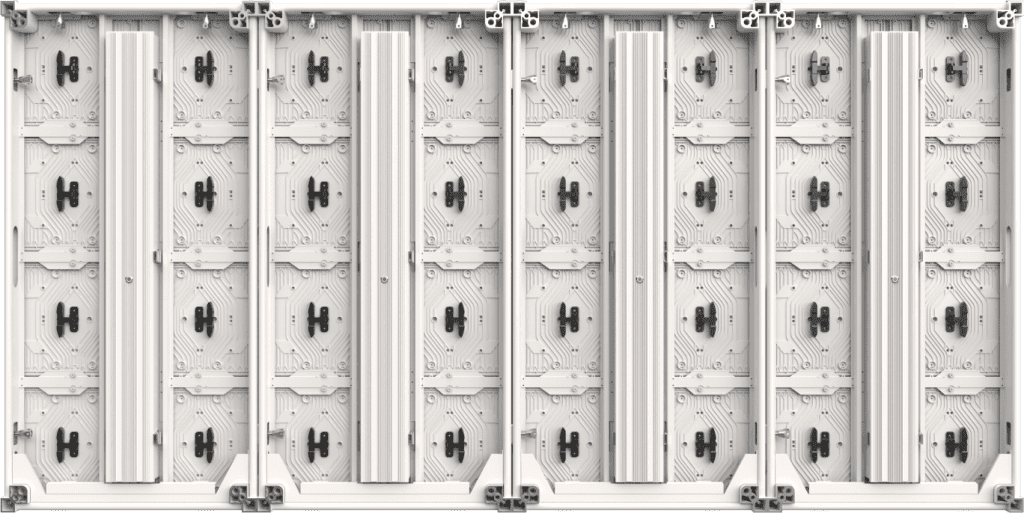

Hardwired and wireless throughout
The structure of the product is hard-wired, hidden wire design, the whole wireless, neat and beautiful appearance.
Waterproof design
IP66 protection level, using outdoor special independent waterproof module and excellent sealing waterproof cabinet to prevent water vapour from attacking the screen, fanless design to reduce the leakage of water failure points.

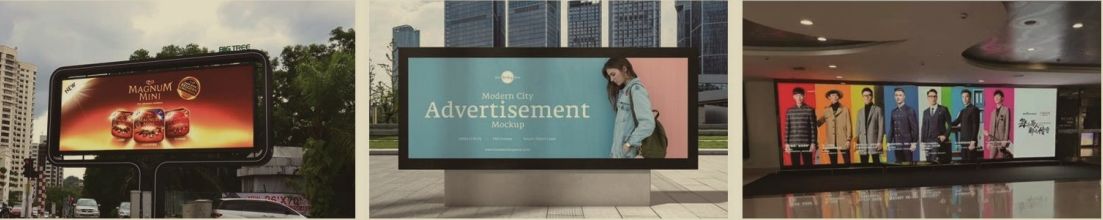

Various Applications
FS500 LED display with high reliability on outdoor environments. The screen is able to be assembled to form the following shapes.
Bill Board
On the building
Standing Pole
Naked Eye 3D LED display
